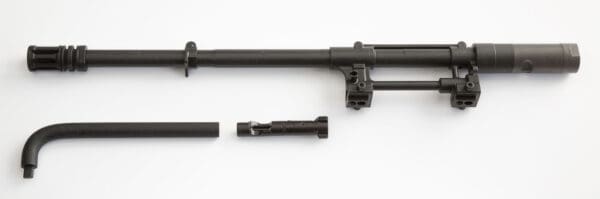

Tavor® SAR 5.56 NATO Barrel & Bolt Kit Right Hand


If you have the Tavor® SAR manual P/N 08011011300 to install your kit, follow:

Section 14.1.1 Quick-Detach Sling Swivels
Section 14.1.3 Sear Mechanism
Section 14.1.4 Recoil Mechanism
Section 14.1.5 Flattop Rail Assembly
Section 14.1.6 Swivel Sleeve and Swivel Lock
Section 14.1.7 Foregrip Group
Section 14.1.8 Cocking Group
Section 14.1.9 Barrel Group
Section 14.2.1 Recoil Mechanism

Removing your barrel without completing Sections 14.1.1 – 14.1.9 first will damage your barrel.

Export Notice:

The International Traffic in Arms Regulations (ITAR) controls this item for export. These controls take the form of export regulations and export license requirements.

As part of the express consideration provided for receipt of IWI US’s goods, technical data, and services, you, our customer, acknowledge that the export, re-export, or other transfer, directly or indirectly, of the goods, technical data and services provided by IWI US in violation of U.S. law is prohibited. Customers acquiring ITAR goods, technical data, and services from IWI US shall be responsible for obtaining any necessary U.S. or other government authorization required to ensure compliance with applicable export laws.


Tavor® SAR Barrel and Bolt Kit Installation Instructions

Suppose you have purchased a Tavor® SAR barrel and right-hand bolt kit. Following the proper installation steps is essential to ensure correct assembly and avoid any damage or safety issues. Here are the instructions provided by IWI US, Inc.:

  1. Headspacing and Bolt Replacement: The barrel and bolt kit come headspace from the factory and should be used together. It is crucial to replace your bolt when replacing your barrel 1 2 3 4 5. This ensures that the headspace is correct and prevents any potential catastrophic failures of the barrel and bolt, which could result in property damage, personal injury, or even death.

  2. Check Local and State Laws: Before assembling your Tavor® SAR with the new barrel and bolt kit, it is essential to check your laws regarding firearm assembly and modifications. Compliance with these laws is crucial for legal and safe firearm ownership 2.

  3. Installation Steps: To install your Tavor® SAR barrel and bolt kit, please refer to the following sections in your Tavor® SAR manual:

    • Section 15.1: Primary Disassembly/Reassembly
    • Section 15.2: Removal/Installation of Sear Mechanism
    • Section 15.4: Secondary Disassembly/Reassembly
    • Section 15.5: Removal/Installation of Flattop Rail
    • Section 15.6: Removal/Installation of Front Swivel and Lock
    • Section 15.7: Removal/Installation of Foregrip Group
    • Section 15.8: Removal/Installation of Cocking Group
    • Section 15.10: Removal/Installation of Barrel Group

    It is important to note that removing your barrel without completing the necessary sections mentioned above (15.1 – 15.10) may result in damage to your barrel.

Please follow these instructions carefully to ensure proper installation and compliance with safety regulations.

Additional information

Weight N/A
Barrel Length

16.5", 18"
